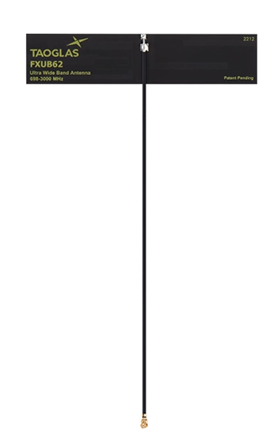

The FXUB62 from Taoglas is a flexible 4G/LTE PCB antenna that operates from 698 to 3 GHz. This linearly polarised antenna provides a peak gain of 5 dBi with an efficiency of more than 45%. It has been designed to cover all cellular, 2,4 GHz Wi-Fi, ISM, and AGPS bands.
The antenna can handle an input power of up to 5 W and has a VSWR of less than 5,2:1. It is available in a self-adhesive 3M package that measures 96,0 x 21,0 x 0,2 mm and has an I-PEX MHF1 connector with a 150 mm RF cable attached.
The omni-directional antenna has a return loss of between 9,7 and 10,7 dB and can operate in a temperature range of -40 to 85°C. The antenna is ideal for wearable healthcare devices, point of sale terminals, and handheld device applications.
