AEC-Q200 compliant line filters

28 October 2020 Circuit & System Protection

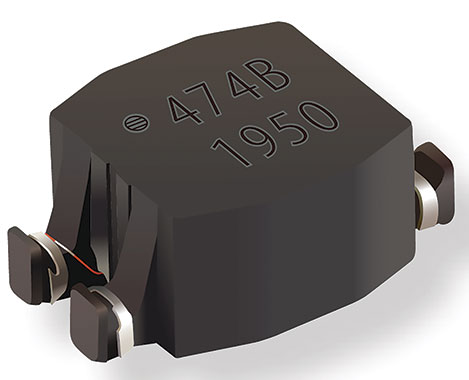

Bourns Magnetics Product Line is introducing the Model DR334A line filter series. These filters are constructed with a ferrite toroid core delivering compact size and high impedance over a broad frequency range to suppress electromagnetic interference (EMI) coming into or leaving the system.

The Model DR334A series is AEC-Q200 compliant with an operating temperature range of -40°C to +135°C. These line filters are available in a bifilar-wound configuration to reach higher common mode impedance and a sector-wound configuration to reach higher differential mode impedance at high frequencies. They are ideal for use in data, signal and low-current power line noise suppression applications in consumer, industrial and other markets.
