X-ray inspection machine

EMP 2021 Electronics Manufacturing & Production Handbook Manufacturing / Production Technology, Hardware & Services

Restrictions in manufacturing materials and ever increasing expectations for reliability mean ensuring quality product manufacture is more important than ever. Jade Plus enables you to prove your quality and reduce product returns from the field, and the associated cost and damage to reputation.

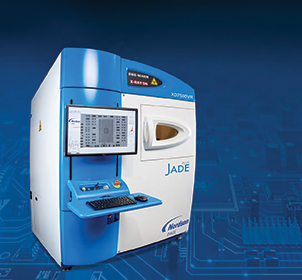

Manufactured by Nordson DAGE, Jade Plus inspects the hidden regions of your products which are inaccessible to optical tools. This allows you to ensure IPC-A-610 and IPC-7095 compliance with built-in checking for BGA and QFN voiding, solder ball diameter, roundness, bridge and missing.

Users can enjoy high throughput even with a high mix of products – program an automated inspection routine once, then load, click and go. You can see from every side at high magnification, and a unique double-angle geometry does not rotate the board so you never lose orientation.

Jade Plus features an open X-ray tube with a replaceable tungsten filament. For a maintenance free alternative, consider Quadra 3 which requires no filament changes, ensuring ‘as new’ uninterrupted performance for life.

For more information contact Techmet, +27 11 824 1427, info@techmet.co.za, www.techmet.co.za
