Power supplies for e-mobility charging infrastructure

27 October 2021 Power Electronics / Power Management

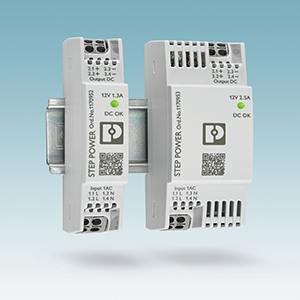

The Step Power family from Phoenix Contact has been extended to include new devices for e-mobility charging infrastructure.

The new 12 V power supplies have a compact design that makes them ideal for use in charging stations. They reliably supply the charging controller and the charging connector interlock in the charging station with 1 A or 2 A. The power supplies have been developed and tested with regard to electromagnetic compatibility (EMC) in accordance with the EN 61851-21-2 charging station standard. They also satisfy safety standards in accordance with EN/UL 61010.

Step Power power supplies are the first devices in the world to deliver Efficiency Level VI – the highest level possible – in no-load and partial-load operation. They feature a high coefficient of efficiency of more than 94% and low no-load losses below 0,1 W. Push-in connection technology at a 45° angle also enables very fast, easy commissioning. A wide temperature range from -10°C to +70°C is supported.

For more information contact Phoenix Contact, +27 11 801 8200, sbritz@phoenixcontact.co.za, www.phoenixcontact.co.za
