Positioning module with untethered and automotive dead reckoning

24 November 2021 Telecoms, Datacoms, Wireless, IoT

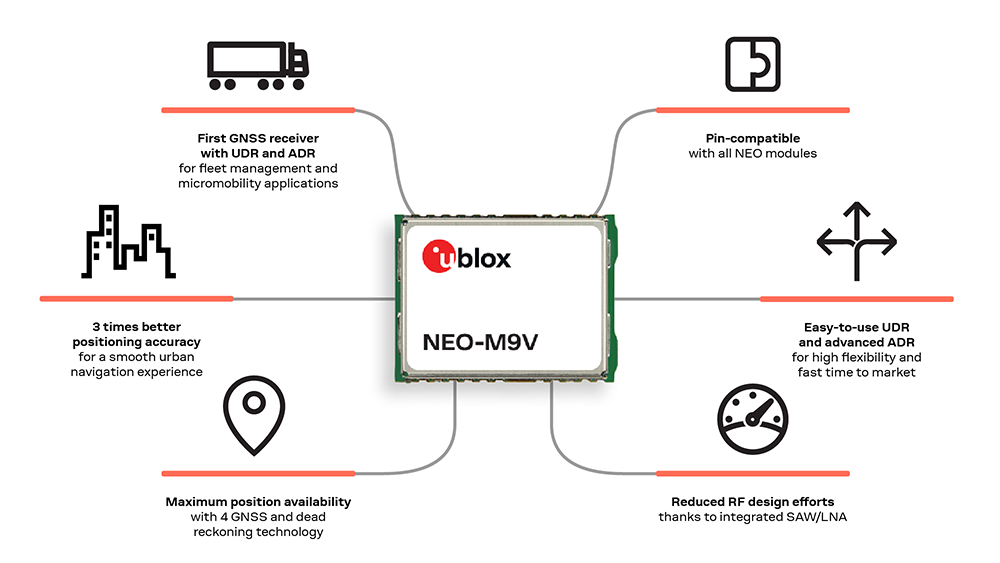

The first u-blox positioning receiver to offer both untethered dead reckoning (UDR) and automotive dead reckoning (ADR), NEO-M9V is an ideal fit for fleet management and micromobility applications that require reliable metre-level positioning accuracy even in challenging GNSS signal environments such as urban canyons.

Vehicle fleet managers seeking to cut costs and lower their carbon footprint depend on accurate positioning and navigation data to reduce fuel consumption. Additionally, accurate odometry data is key to fleet managers for billing and compliance.

Micromobility operators need to accurately locate their devices to service the individual bikes and scooters, as locating vehicles on the wrong side of a street can force drivers to make long detours to reach their intended destination, incurring additional cost, lowering service quality and polluting the air. Accurate positioning is also vital to geofence their operation in compliance with local regulations.

Using inertial sensor measurements, UDR offers a smooth navigation experience in dense urban environments by bridging gaps in GNSS signal coverage and mitigating the impact of multipath effects caused by GNSS signals that bounce off buildings. ADR further increases positioning accuracy in demanding environments by including the vehicle speed in the sensor fusion algorithm.

Offering both UDR and ADR on the same module delivers maximum positioning performance and design flexibility at once, allowing customers to provide the best solution case-by-case to each of their end-customers.

NEO-M9V also features dynamic models optimised for both cars and e-scooters. By adapting the algorithms of the dead reckoning solution to the behaviour of these use cases, these dynamic models further increase the quality of the position reading.

Based on the robust M9 technology platform

NEO-M9V is based on the u-blox M9 GNSS technology platform. Its ability to track up to four GNSS constellations maximises the number of GNSS satellites within its line of sight at any given moment. Integrated SAW and LNA filters offer excellent interference mitigation for a robust solution, and compatibility with the popular NEO form factor reduces migration efforts for customers upgrading existing designs.

For more information contact Andrew Hutton, RF Design, +27 21 555 8400, andrew@rfdesign.co.za, www.rfdesign.co.za
