USB-attachable vector network analyser

26 April 2022 Test & Measurement

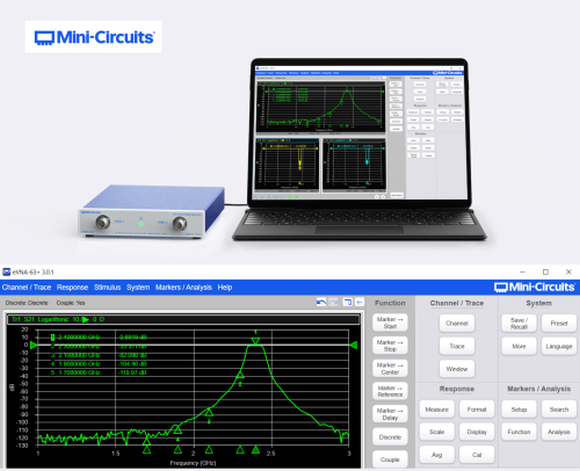

Mini-Circuits announced the release of its new eVNA-63, a high-quality and affordable test instrument with a bandwidth from 300 kHz to 6 GHz.

The unit has a typical dynamic range of 132 dB, a trace noise of 0,005 dBrms and an output range of -50 to +10 dBm. It is a 2-port, 2-path S-Parameter test instrument with a built-in bias tee accessible on both ports. The device has up to 16 independent measuring channels and does full 2-port S-parameter, S11, S21, S12 and S22 measurements.

eVNA Studio Software gives the user access to up to 9 markers per trace, and display traces can be stored to memory which can be viewed or used in trace math operations including Data+Mem, Data-Mem, Data*Mem and Data/Mem. Traces are viewable in several formats, including sweep stimulus, analysis and markers, data export and calibration features.

The eVNA-63is compact, with a weight of only 4,5 kg, and comes with a standard warranty of 3 years.

For more information contact Conical Technologies, +27 66 231 1900, [email protected], www.conical.co.za
