Multilayer ferrite beads

30 May 2022 Passive Components

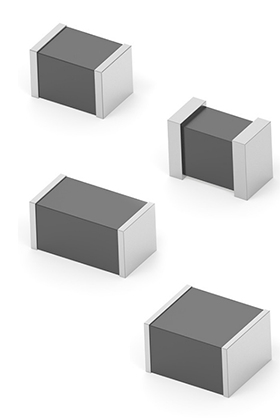

TE Connectivity’s BMC series of multilayer ferrite beads cover a wide range of impedance characteristics. The chip beads have a monolithic inorganic material construction that reduces the effect of electromagnetic interference (EMI) and high-frequency noise in electronic circuits.

A ferrite bead can be added to an inductor to improve the ability to block unwanted high-frequency noise. First, the ferrite concentrates the magnetic field, increasing inductance and therefore reactance, which impedes or ‘filters out’ the noise. Second, if the ferrite is so designed, it can produce an additional loss in the form of resistance in the ferrite itself. This series is offered in 0402, 0603, 0805, 1204 and 1210 package sizes.

The BMC series is promoted as a direct replacement for the recently discontinued BMB series. Applications include cellular phones; computers and peripheral equipment; automation controls; sensors; VCRs, televisions and pagers; and other circuits where a stable ground is unavailable.
