Evaluation board for MEMS accelerometers

30 May 2022 Analogue, Mixed Signal, LSI

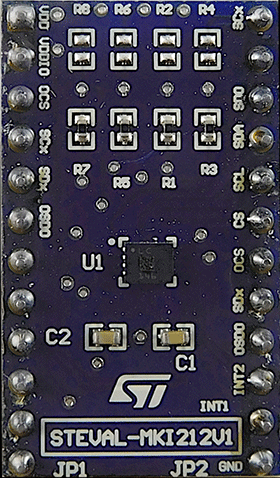

The STEVAL-MKI212V1 from STMicroelectronics is an adaptor board designed to facilitate the evaluation of MEMS devices in the ASM330LHHX product family. The board offers an effective solution for fast system prototyping and device evaluation directly within the user’s own application.

Pluggable into a standard DIL 24 socket, the adaptor board provides the complete ASM330LHHX pinout and comes ready-to-use with the required decoupling capacitors on the VDD power supply line.

The board is supported by ST’s STEVAL-MKI109V3 motherboard, which includes a high-performance 32-bit microcontroller functioning as a bridge between the sensor and a PC, on which it is possible to use the downloadable graphical user interface (Unico-GUI) or dedicated software routines for customised applications.

For more information contact Renaldo Fibiger, Altron Arrow, +27 11 923 9600, [email protected], www.altronarrow.com
