Samtec’s ultra-rugged solutions offer reliability and durability to meet the needs of any extreme environment typical in military, avionics, space and submersible applications. Features in the range include rugged contact systems, EMI shielding, high-temp coatings and high cycle life in small form factors with cost and design flexibility.
The URSA I/O rugged power systems feature a hyperboloid-type contact. The connector is extremely dense with up to 1450 total I/Os in a 1RU panel. This system is either cable-to-cable or cable-to-board and contains up to 40 positions per row on a 1 mm pitch.

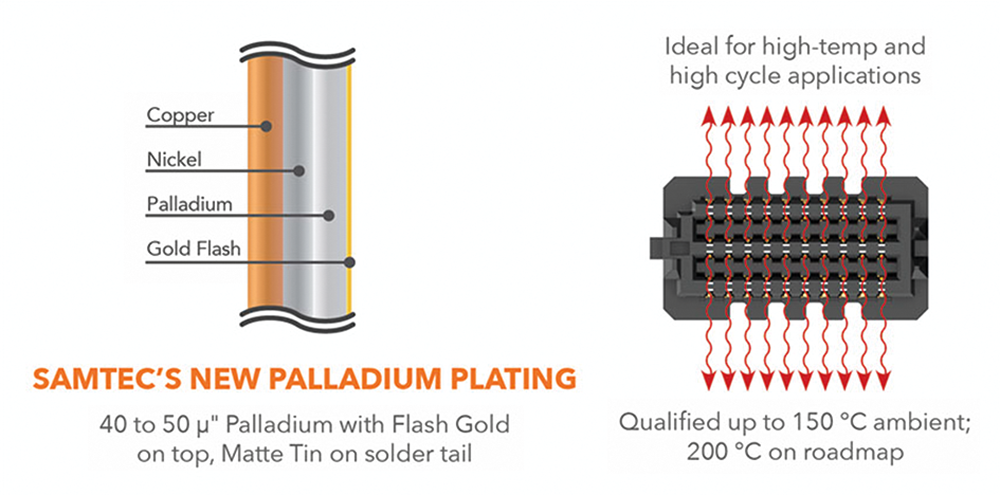

Samtec also provides its proprietary SureCoat coatings for high-temperature, high cycle life solutions for harsh environments. The new palladium coating handles high-temperature applications up to 150°C ambient. These connectors are currently available with a 1,27 mm pitch in high-density arrays and have been tested to 3000 mating cycles.
Mill-Max expands organic fibre plug receptacle lineup Spectrum Concepts
Manufacturing / Production Technology, Hardware & Services
Mill-Max has announced additions to its organic fibre plug receptacle line, covering a wide range of lead sizes and offering early engagement/dual entry capability.
Read more...High-speed data transmission connectors Spectrum Concepts
Enclosures, Racks, Cabinets & Panel Products
Fischer Connectors is expanding its platform capabilities to meet the most demanding connectivity requirements for high-speed data transfer using the USB 3.2 Gen 2 protocol up to 10 Gbit/s.
Read more...IO-Link compatible fibre-optic sensor Vepac Electronics
Interconnection
The DFS71 is a digital fibre-optic sensor with configurable outputs: single output with remote input, redundant, complementary, and classic, which can all be configured as PNP (source), NPN (sink), or push/pull.
Read more...High-performance connector
Interconnection
The CMM SMPM Series is the result of a collaboration between Nicomatic, a leader in connectors for harsh environments, and Radiall, an expert in RF coaxial connectors.
Read more...Multi-channel SMPM cable assembly RFiber Solutions
Interconnection
Withwave’s multi-channel SMPM cable assemblies provide a choice of 26,5, 40 or 50 GHz configurations based on precision array design and superior high-frequency cabling solutions.
Read more...M12 connectors with push-pull fast locking Phoenix Contact
Interconnection
Phoenix Contact’s push-pull fast-locking system, and the Push-Lock conductor connection, make assembly and installation effortless and reliable.
Read more...Connectors for automotive zonal architectures RS South Africa
Interconnection
Rosenberger H-MTD connectors form the basis for reliable and efficient data transmission now and for future automotive zonal architectures.
Read more...Narrow-body RF edge connectors Spectrum Concepts
Interconnection
These connectors compression mount to the printed circuit board instead of requiring solder, which results in increased signal integrity performance.
