PFC thyristor module
4 June 2014, Power Electronics / Power Management

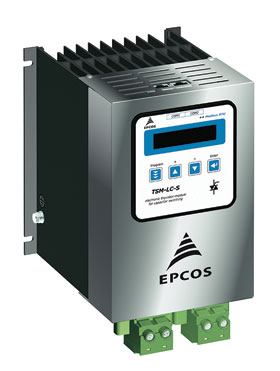

TDK’s new EPCOS TSM-LC-S thyristor module for dynamic power factor correction (PFC) is designed for voltages of 200 V to 440 V a.c. (50/60 Hz) and is suitable for compensating reactive power up to 55 kVAR.

Installation takes place via the system bus (RJ45) and integrated circuitry logs key operating data such as voltage of the grid and the current, temperature and switching state of the PFC capacitor. The maximum values of these parameters are simultaneously stored.

The data is transmitted via the interface to the power factor controller and processed further, thus enabling comprehensive capacitor and system protection. In addition, the TSM-LC-S features a high-contrast OLED display for the operating data and alarm and error messages.

The unit operates silently with no wear and is maintenance free. It has a switching time of only 5 ms. The module also increases the operating life of the capacitors, as it switches at the zero crossing of the current and monitors the capacitor current. Dangerous over-currents are avoided and the power line is not exposed to transients.

The TSM-LC-S thyristor module is especially suitable for PFC applications with presses, welding machines, elevators, cranes and wind turbines, for example.

For more information contact Electrocomp, +27 (0)11 458 9000, andrew@electrocomp.co.za, www.electrocomp.co.za


Credit(s)
Supplied By: Electrocomp
Tel: +27 11 458 9000
Fax: +27 11 458 9034/5
Email: andrew@electrocomp.co.za
www: www.electrocomp.co.za
