Discrete wire connectors on 0,80 mm pitch

4 February 2015 Interconnection

Samtec recently expanded its line of Tiger Eye products with a 0,80 mm pitch discrete wire system ideal for rugged applications where a highly reliable connection must be maintained. The micro pitch system increases contact density for greater space savings and can withstand a high number of mating cycles.

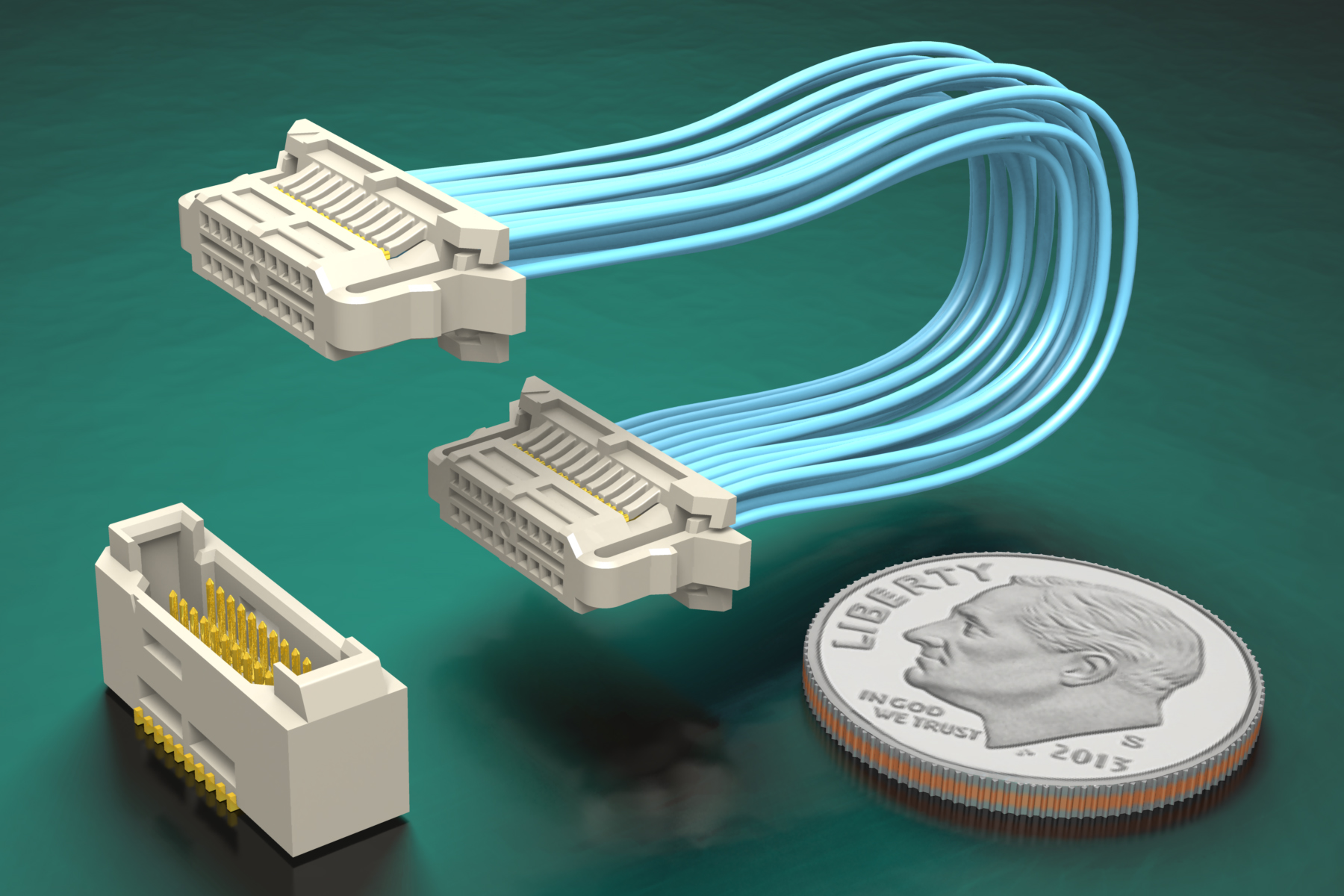

The Tiger Eye discrete wire socket cable assembly (SESDT series) is available in a double-row design with up to 40 total positions and #32 AWG Teflon cable for use in high temperatures and other harsh environments. Rugged latching is standard on the assembly with a choice of single or double ended.

Components are also available (ISDE/CC396 series) along with hand tool or mini applicator for customer assembly production. The mating board-level terminal connector (TEM series with –L1 latching option) features standard surface-mount tails along with through-hole weld tabs for increased stability.

For more information contact Craig Gibbs, Avnet Kopp, +27 (0)11 319 8600, [email protected], www.avnet.co.za
