Keysight Technologies has developed a highly dense, 64 synchronous multichannel data acquisition system.
Composed of eight M9703A AXIe high-speed digitisers in a 14-slot chassis, the system was developed for an enterprise leader in satellite telecommunication systems, where its main requirement was multichannel synchronisation and FPGA programming capability. Synchronisation is realised through an AXIe local bus backplane, and up to 13 modules can be installed in the chassis for a total of 104 channels.

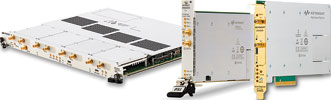

The system is composed of eight M9703A AXIe 8-channel, 12-bit high-speed digitiser/wideband digital receivers able to capture signals from DC up to 2 GHz at 1,6 GSps; one U5340A FPGA development kit for high-speed digitisers; one M9514A AXIe 14-slot chassis that provides 13 instrument module slots plus an AXIe system slot; and one M9521A AXIe system module that provides the required system communication and synchronisation functions including trigger bus and clock routing and management.
