Ferrite magnetic design tool
26 June 2019, Passive Components

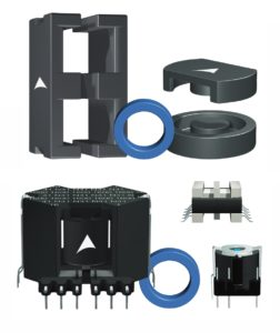

The MDT software from TDK allows application-related parameters to be calculated for all available Epcos ferrite cores and/or materials. It provides access to digitalised material data including their graphical representations.
The user manual of the software contains a detailed description of all functions. The tool can be used as an online version - tested in browsers like Google Chrome, Mozilla Firefox, Internet Explorer and Opera - or as a download developed for Windows 7 and 10. The online version does not offer the same comprehensive set of functions as the desktop version.
Among the features of the current MDT version are:
* Simulations based on user-defined core parameters.
* Database expanded to include Steinmetz coefficients for power losses.
* Display of complex permeability and impedance as a function of frequency.
* Display of impedance (Z) as the relation between core impedance and frequency.
* Transmittable power adjusted for skin and proximity effects (from the wire calculation menu).
* Calculation of the distortion factor (third harmonic) under specific circuit conditions at various temperatures.
* Calculation of core loss as a function of signal form.
* Specification of wire thickness as per American Wire Gauge (AWG).
For more information contact Electrocomp, +27 11 458 9000, andrew@electrocomp.co.za |
|
|
|
