Advanced lithium ion battery charger features µP status interface
5 November 2003, Power Electronics / Power Management

Charging Lithium Ion (or Polymer) batteries can be a hazardous and difficult challenge. At any time during the battery's discharge cycle, a charger may be applied and unless the correct method and level of charge is applied, damage to the battery may occur. To avoid this, any charge scheme must first monitor several battery and charger parameters before determining the correct charging mode to apply.

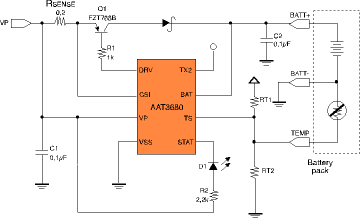

One such charger is the AAT3680 Battery Manager from Advanced Analogic Technologies. Packaged in a small MSOP8 package, the AAT3680, with a minimal number of external components (Figure 1), provides the control and interface to correctly charge either a single cell or a two cell Lithium Ion battery pack with a single cell voltage of 4,2 V.

Figure 1
Figure 1

The charge cycle

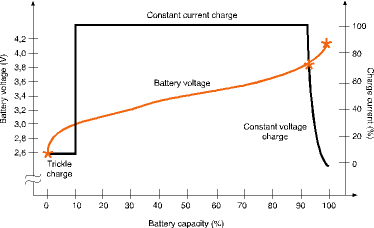

The charge and discharge cycle of a Lithium Ion battery is shown in Figure 2. As can be seen, fully discharged, the battery voltage can be as low as 2,6 V and fully charged as high as 4,2 V. To maximise the battery lifetime and to replenish the charge as quickly as possible, a typical charging scheme will employ both constant current and constant voltage techniques and apply them at the optimum point on the discharge curve. To achieve this battery voltage, charging current, charger voltage and battery temperature must be continuously monitored. In the event of battery over-charge, over-temperature, short circuit, charger over-voltage, or charger chip over-temperature, the AAT3680 will shutdown, therefore protecting the system.

Figure 2
Figure 2

Operation

A typical charging sequence is as follows: Starting with a fully discharged battery, the terminal voltage can be significantly below 3 V. Charging at the full rate of charge at low battery voltages can significantly reduce the lifetime of the battery. Therefore, below 3,1 V the battery must be preconditioned and the AAT3680 applies a charging current equal to approximately 10% of the full charging current (Trickle Charge Mode). To increase the rate of conditioning, therefore reducing the charge time, the AAT3680 has an option to increase the trickle charge current by a factor of two. This will slightly increase the battery temperature, but the battery temperature monitor will ensure that accelerated conditioning will not damage the battery. Once the battery voltage reaches the 3,1 V threshold the AAT3680 will now move into constant current mode and charge the battery via an external PNP transistor at a current defined by a current sense resistor. Charging will continue in constant current mode until the battery reaches the charge regulation voltage. Here the AAT3680 moves into constant voltage mode and will continue until the charging current falls to the charge termination threshold (4,1 or 4,2 V). During this time the voltage is maintained within 1% of its final value. Charging will now cease and will not restart unless the battery voltage falls below the battery recharge voltage threshold. In either a fully charged state or when the charger is not connected, the AAT3680 will go into sleep mode consuming typically less than 3 µA. In operating mode the AAT3680 consumes a miserly 2 mA.

One of the unique features of the AAT3680 is its status pin. An open drain serial output is capable of displaying five distinct status functions with one external LED connected between the drain and charger voltage. These functions are: Sleep/Charge Complete, Over-temperature, Battery conditioning, Constant Current Mode and, Constant Voltage Mode. There are four time periods to determine a status word and with one period equal to one second, a complete word will take four seconds to display through a LED. During the power up sequence, this time period can be decreased to 40 µs allowing this status to be read by a system µcontroller in 160 µs.

Summary

The AAT3680 is an advanced Lithium Ion battery charge and management IC, specifically designed for low cost compact portable applications. Its small size and minimal external parts count make charging Lithium Ion batteries both safe and reliable. Its unique output status pin coupled with an almost negligible current drain makes it an ideal component for use in portable appliances where size, efficiency and functionality are key design parameters.
