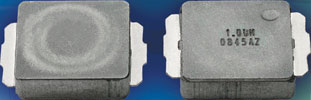

New from Vishay is a winged, low-profile, high-current inductor. Designed to be placed on a cut-out PCB, the IHLW-5050CE-01 offers designers a high-current solution using a larger part, without exceeding a profile of 1,2 mm on either side of the PC board.
With a frequency range up to 5 MHz, the new inductor serves as a high-performing, space- and power-saving solution for voltage regulator module (VRM) and DC-to-DC converter applications in end products including low-profile, high-current power supplies and point of load (POL) converters, distributed power systems and field-programmable gate arrays (FPGAs).
The inductor offers an inductance range from 0,10 μH to 10 μH, a saturation current range from 14 A up to 84 A, typical DCR from 0,8 mΩ to 30,4 mΩ, and maximum DCR from 0,96 mΩ to 34,0 mΩ. It handles high transient current spikes without hard saturation. Packaged in an RoHS-compliant, 100% lead-free shielded, composite construction that reduces buzz noise to very low levels, the device is specified for an operating temperature range of 55°C to +125°C, with high resistance to thermal shock, moisture, mechanical shock and vibration.
