Enhanced vision processing for module parts
10 October 2018, Manufacturing / Production Technology, Hardware & Services

Fuji has developed a new function suitable for manufacturing module parts. Along with the spread of mobile devices and wearable devices, the demand for module parts used in these products has been increasing. As module parts are smaller, lighter and more advanced, parts composing those module parts follow the same trend as well.

There is a growing need to support these new parts and efficiently produce them at production sites. On the other hand, there are some problems to be solved. For example, when placing parts such as system in package (SiP) or wafer level chip size package (WLCSP) parts, the bump positions could not be detected correctly when vision processing.

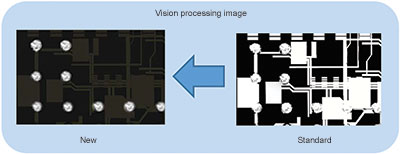

To deal with this problem, Fuji has successfully developed a technology by improving the vision processing camera. It is now possible to acquire an image of bumps alone without reflecting the circuits of SiP and WLCSP. Furthermore, by combining units and functions that are effective for manufacturing module parts, including placement modules (M3IIIS), heads (H24A), a dipping unit, a nozzle with a slit, and vacuum backup, the company can offer solutions for high-quality placement of module parts to enhance productivity.


Credit(s)
Supplied By: Testerion
Tel: +27 11 704 3020
Fax: 086 555 0111
Email: info@testerion.co.za
www: www.testerion.co.za
