Enclosures, Racks, Cabinets & Panel Products


Enclosures for small table-top instruments

30 September 2020 Enclosures, Racks, Cabinets & Panel Products

The Evotec range of table-top plastic enclosures, made by OKW, is suitable for tough working environments in applications such as measurement and control engineering, IT, medical, laboratory and environmental technology.

Evotec can also be wall mounted for access control. These enclosures feature elegant and ergonomic soft contours but are built to be robust. They are moulded from ASA+PC-FR (UL 94 V-0) for enhanced UV stability and can be specified with a sealing kit for IP65 protection.

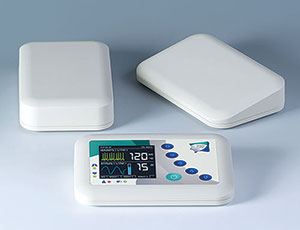

There are three variants: Version I has a flat top with a large operating area for switches, push buttons and touch displays. Version II features a smooth sloping top for desktop applications. Version III also has a sloping top but is recessed to accommodate a membrane keypad or product label. All three versions have PCB screw pillars in the top and base. Rubber feet ensure stable positioning on flat surfaces. Torx assembly screws prevent tampering – perfect for medical applications.

Evotec is available in one size (7.87” x 4.88”) and in one standard colour: off white (RAL 9002). Accessories include an IP65 seal, wall mounting kit and self-tapping screws for fitting PCBs.

OKW can customise Evotec on request. Services include custom colours, RFI/EMI shielding; CNC machining; lacquering; water transfer, tampo or digital printing of logos and legends; installation and assembly of accessories; display windows; plastic and aluminium panels.
