Motion sensors for industrial applications

26 February 2021 Analogue, Mixed Signal, LSI

TDK has launched a new compact and low-power InvenSense SmartIndustrial sensor platform family. With its support for an extended temperature range of -40°C to 105°C, the new family of 3-axis accelerometers and a 6-axis inertial measurement unit (IMU) targets a wide range of industrial applications.

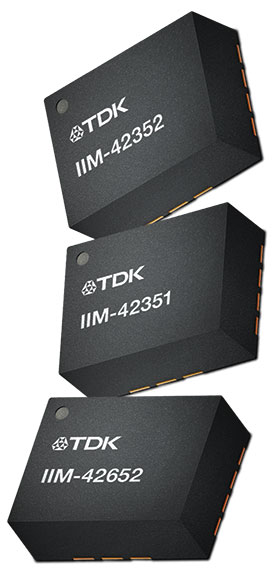

The IIM-42352 and IIM-42351 platforms can measure three dimensions of linear acceleration, while the IIM-42652 platform can measure three dimensions of linear acceleration and three dimensions of rotational rate.

IIM-42352 offers a very low noise and low power 3-axis accelerometer solution that can precisely measure vibrations up to 4 kHz. With its ability to measure a wide range of vibration frequencies, it can be used for predictive maintenance of rotating equipment such as pumps, motors, and compressors, enabling customers to predict failures before they happen.

IIM-42351, a very low noise 3-axis accelerometer with support for extended temperature ranges, is applicable to a wide range of industrial IoT applications. For example, it can be used to measure inclinations of industrial machinery, robotic arms, AGVs, utility poles and cameras.

IIM-42652 is the smallest, most cost effective, and lowest power 6-axis IMU within the SmartIndustrial product line. Apart from delivering precise measurements with its low noise 3-axis gyroscope and 3-axis accelerometer, the IIM-42652 can support up to 105°C operating temperature. This device is suitable for a wide variety of applications including navigation and stabilisation of industrial machinery and robots.

For more information contact Electrocomp, +27 11 458 9000, sales@electrocomp.co.za, www.electrocomp.co.za
