Mini connectors for signal transmission on PCBs

23 June 2021 Interconnection

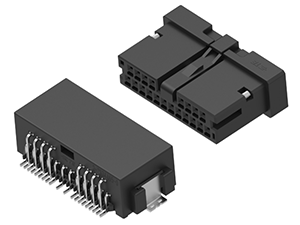

TE Connectivity’s Dynamic Mini Series has the lowest profile in the Dynamic Series family, with a header height of only 8,7 mm. Besides the audible locking system and unique crimping contact design found on standard Dynamic connectors, the second lock concept and protective latch design enables use of the connector in high-vibration environments with limited space.

The Dynamic Mini Series supports reflow soldering processes with SMT technology and the standard pitch is 1,8 mm with rated current up to 3 A, making it a good solution for signal lines.

Features

• Higher reliability due to second lock design and protective latch concept.

• Space saving on board due to low profile.

• Faster system assembly due to SMT reflow capability.

For more information contact Electrocomp, +27 11 458 9000, sales@electrocomp.co.za, www.electrocomp.co.za
