Dual-jetting fluid dispensing system

28 July 2021 Manufacturing / Production Technology, Hardware & Services

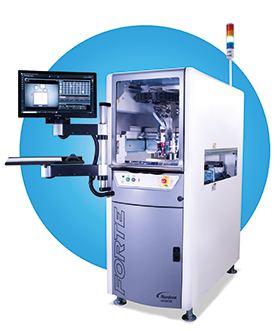

Nordson Electronics Solutions announced the new Asymtek Forte Max fluid dispensing system with high accuracy, dual-valve jetting in two modes, and patented, real-time correction to accommodate skewed parts. Designed for high-volume electronics manufacturing, Forte Max improves throughput for printed circuit boards and flex circuit assembly, MEMs, and electromechanical assembly when dispensing sealants, encapsulants, underfills and precise coating.

The system dispenses from two identical or two different valves using a single set of hardware. In one configuration, two high-frequency IntelliJet jetting systems dispense fluid simultaneously for applications with multi-up, panelised or patterned parts with consistent spacing. In a second configuration, two different fluids are dispensed on the same part from two different valves, such as for dam-and-fill encapsulation and in high-mix production environments.

A unique skew adjustment function comes with the dual-valve system so that production is not slowed by shifted parts and varied component heights. The patented real-time correction automatically adjusts for skewed parts and component height variation in the x, y and z axes.

One customer has seen a 100% increase in throughput with the Forte Max system after upgrading from the popular Spectrum II with two original DispenseJet DJ-9500 valves. During the underfilling operation, several factors contribute to the improvement: the motion control system checks fiducials quicker and moves the jets faster. The real-time skew correction increases the number of good parts produced. The IntelliJet systems operate at 500 Hz, versus older jets at 200 Hz, resulting in fluid being deposited more quickly. In addition, setting up the Forte Max is simpler and more efficient so that changeovers are easier and faster.

The integrated dual-valve service station, closed-loop process controls and nozzle-cleaning rail reduce operator maintenance, improve productivity and keep the dispensing process within set limits. The system runs with Canvas dispensing software which simplifies programming tasks. Graphical programming lets the user scan a workpiece, develop their program online or offline, and simulate the dispensing results on a virtual canvas.

For more information contact Techmet, +27 11 824 1427, info@techmet.co.za, www.techmet.co.za
