LTE or 4G are now well-established as the go-to cellular technology for IoT. LTE Cat 1 is particularly attractive for use cases that benefit from its blend of competitive cost, ubiquitous coverage and adequate performance. Within the LTE family, variants exist that encompass lower end offerings such as LTE-M and niche technology, such as LTE-Advanced. With LTE-M and NB-IoT handling the low power wide area (LPWA) end of the market, there is an enormous middle ground for LTE Cat 1 to serve, along with Cat 4 and other variants.
In addition to this, Cat 1 bis, a single antenna variant of Cat 1, provides compelling performance, efficiency and cost benefits, which are detailed in this paper. Analyst firm Omdia reports that cellular IoT connections will hit 5,4 billion in 2030 with significant growth driven by the introduction of 5G RedCap, Massive IoT (NB-IoT) and LTE Cat 1 bis modules.
The 5G variants are at the very beginning of deployment with low shipment volumes today. These technologies will need time to mature and for adoption to become mainstream.
The current market and the market of 2030 will be dominated by LTE connections. The composition of this is likely to shift towards variants, such as Cat 1 bis, but the bulk of the installed base today remains Cat 1.
Cat 1 has become so pervasive in cellular IoT (see Figure 1) because of the blend of functionality it offers. Introduced as part of 3GPP Release 8 in 2008, the technology was the first LTE variant to be developed for IoT applications. Cat 1 offers typical speeds of 10Mbps downlink and 5Mbps uplink, which is sufficient to support video streaming. In addition, it supports voice, in common with all LTE variants, via voice over LTE.
For latency-sensitive applications, Cat 1 offers latency of 50-100 milliseconds, placing it above Cat M and NB-IoT, but beneath higher LTE categories. Cat 1 is sufficient to support popular IoT activities such as firmware upgrade over-the-air (FOTA) with better capability than LTE-M. Power saving techniques such as power saving mode (PSM) and extended discontinuous reception (eDRX) are also supported.
5G transparent antenna iCorp Technologies
Telecoms, Datacoms, Wireless, IoT
Quectel Wireless Solutions recently announced the launch of its 5G transparent antenna, the YFCX001WWAH, an innovative solution designed to improve connectivity while maintaining seamless device design.
Read more...GNSS chipset for wearables RF Design
Telecoms, Datacoms, Wireless, IoT
The UBX-M10150-CC from u-blox is a GNSS chip that supports GPS, QZSS/SBAS, Galileo, and BeiDou constellations, and is designed for integration into wearable applications.
Read more...X-band radar RF Design
Editor's Choice Telecoms, Datacoms, Wireless, IoT
X-band radar systems, particularly those leveraging beamforming ICs (BFICs), advanced gallium nitride (GaN) and gallium arsenide (GaAs) components, are leading the way in providing the high-performance radar capabilities required for modern defence and surveillance.
Read more...Reference board for cardio monitoring Altron Arrow
Telecoms, Datacoms, Wireless, IoT
The STDES-ESP01 reference board from STMicroelectronics demonstrates the capability of the ST1VAFE6AX and ST1VAFE3BX biosensors to detect ECG and SCG signals.
Read more...LTE Cat 1 bis communication iCorp Technologies
Telecoms, Datacoms, Wireless, IoT
The EG810M series is a series of LTE Cat 1 bis wireless communication modules specially designed by Quectel for M2M and IoT applications.
Read more...Quad-channel 16-bit converter RFiber Solutions
Telecoms, Datacoms, Wireless, IoT
The ARF0468 from Advance RF is a quad-channel mixed-signal processing chip, with each channel comprising three major functional modules: ADC/DDC/DDS.
Read more...Tactical navigation system Etion Create
Telecoms, Datacoms, Wireless, IoT
Etion Create’s CheetahNAV Compact is a versatile tactical navigation system designed for security services, emergency services, and light all-terrain vehicles (ATVs) using offline navigation maps.
Read more...Smart module for multi-media devices iCorp Technologies
Telecoms, Datacoms, Wireless, IoT
Powered by a Qualcomm processor, Quectel’s new SC200V is designed to deliver exceptional performance across system capabilities, multimedia functions, and network connectivity.
Read more...Remote provisioning firmware added to SIMCom modules Otto Wireless Solutions
Telecoms, Datacoms, Wireless, IoT
SIMCom recently announced that its range of Cat 1 bis IoT modules are now being prepared with the firmware necessary to support SGP.32 functionality.
Read more...GNSS antenna redefining what’s possible RF Design
Telecoms, Datacoms, Wireless, IoT
u-blox has achieved what was once thought impossible with the launch of the DAN-F10N, the industry’s smallest and most reliable L1, L5 dual-band GNSS antenna module.

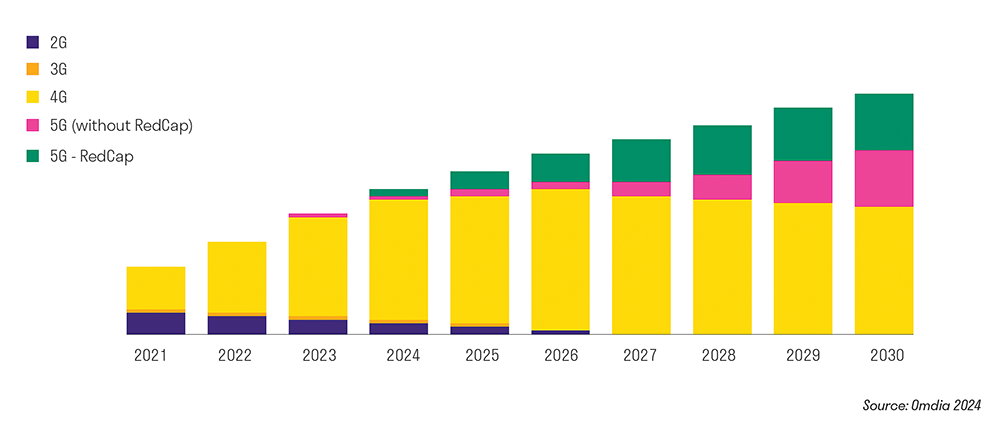

Figure 1: Cellular IoT connections by air interface, 2021 to 2030 [Source: Omdia 2024]
