12 kW hybrid inverter

29 June 2026 Power Electronics / Power Management

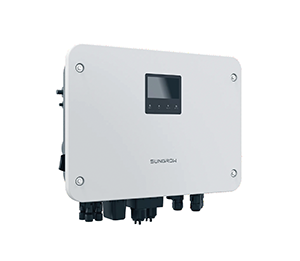

Sungrow recently unveiled its next-generation residential energy storage solution, expanding its power range from 5 kW to 12 kW with the introduction of the new MG12RL hybrid inverter.

Designed for both solar self-consumption and backup power applications, Sungrow’s residential ESS solution supports a wide range of deployment scenarios, allowing homeowners to tailor their energy strategy according to their preferences and requirements. The solution features the MGRL series hybrid inverter, scalable from 5 kW to 96 kW through parallel operation, and supports flexible battery options including the MGL060, MBL050, MBL120, and MBL160, covering capacities from 5 kWh to 16 kWh and expandable up to 320 kWh for larger residential energy needs.

To maximise solar self-consumption and improve overall energy efficiency, the system supports up to 200% PV oversizing capability and 160% maximum output capacity, helping households capture more solar energy throughout the day. Supporting up to 20 A input current, the solution is compatible with most mainstream PV modules, providing greater flexibility for both new installations and retrofit projects.

Built for demanding climates, the system maintains full power output at ambient temperatures up to 45°C, helping ensure stable solar generation during periods of peak daytime demand. The solution also integrates Sungrow’s patented PID ZERO technology, which actively mitigates PID effects without disconnecting from the grid, helping preserve long-term PV performance and energy yield.

The system switches to off-grid mode within just 4 milliseconds, enabling seamless backup power during grid outages. The solution also delivers up to 200% overload output for 10 seconds to support the startup and stable operation of essential household appliances. For easier operation and maintenance, the system features a 4,3-inch full-colour touchscreen for intuitive local commissioning and supports setup in less than 30 seconds without internet access. Through the iSolarCloud platform, users can conveniently manage system settings, enabling smarter and more efficient energy management.

For more information contact Herholdt’s Group, +27 51 447 1961, [email protected], www.herholdts.co.za
