Expanded range of high-thermal-performance QSiC modules

31 July 2026 Power Electronics / Power Management

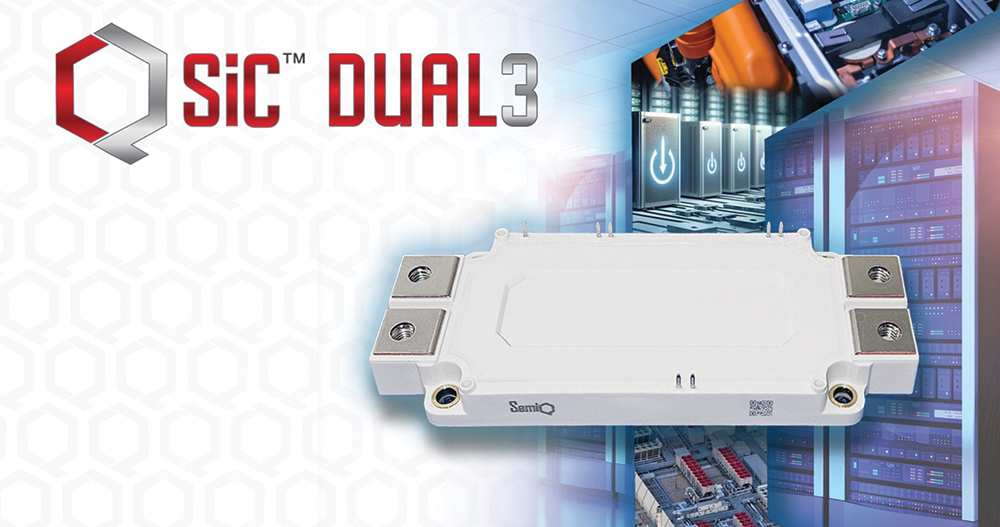

SemiQ Inc has expanded its QSiC Dual3 family of half-bridge MOSFET modules, adding high-thermal-performance options with AlN (aluminum nitride) substrates and pre-applied TIM (thermal interface material), as well as new 1700 V devices. The expanded family addresses demanding applications such as AC-DC converters and solid-state transformers (SSTs) in AI data centre power systems, in addition to grid converters in energy storage systems, and industrial motor drives in chillers and cooling towers.

The family enables the creation of power converters with industry-leading conversion efficiency and power density. Additionally, the series includes an optional parallel Schottky barrier diode (SBD) to further reduce switching losses and improve efficiency in high-temperature environments. Several of the family’s devices exhibit RDSON as low as just 1 m?, alongside power levels of 1150 A, 1200 V from a 62 x 152 mm package.

The QSiC Dual3 has been developed to enable the replacement of IGBT modules with minimal redesign, with all MOSFET die being screened using wafer-level gate-oxide burn-in tests exceeding 1450 V. The modules additionally feature a low junction-to-case thermal resistance and enable a simplified system design with smaller, lighter heatsinks.

“Given that data centres require continuous, round-the-clock operation, maximising efficiency is critical,” said Dr. Timothy Han, president at SemiQ, “The flexible design and industry-leading power density of our QSiC Dual3 series supports both active front-ends and compressor drives on liquid chiller applications, reducing size and weight compared to traditional silicon IGBT solutions, while delivering the full efficiency of SiC.

“With the new high-thermal-performance options, the modules are also now being designed into the main AC-DC power converters and SSTs. This enables direct conversion from medium-voltage 13,8 kV or 35 kV AC to high-voltage 800 V DC, delivering the ultra-efficient operation that modern data centre power systems demand.”

For more information visit www.semiq.com
