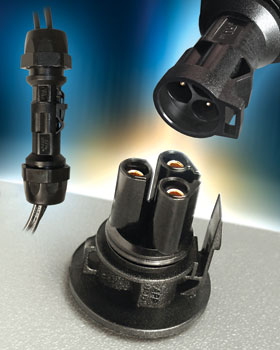

Anderson Power Products has added a jam nut connector to its 3-position Mini PL family of SPEC Pak sealed connectors.
This compact, panel mountable connector is capable of 22 A at 600 V a.c./d.c. (UL).
The jam nut connector, like the other connectors in the range, features a manual release latch to prevent accidental unmating, and is touch safe per UL 1977 section 10.2. Its rugged shell is waterproof to IP68, fire resistant to UL94 V and weather resistant to UL746C F1.
The connector leverages PowerMod pin and socket contact technology. These 30 m gold plated contacts will accommodate wire sizes from #24 to #12 AWG (0,25 to 3,30 mm²). The pins are available in three lengths providing sequencing capabilities for design flexibility.
