Power distribution enclosures

18 March 2015 Enclosures, Racks, Cabinets & Panel Products

The XL³ family of cabinets and enclosures, part of Legrand’s modular power distribution enclosure range for commercial and industrial applications, has been extended to now include XL³ 6300 enclosures which can be equipped with DMX³ air circuit breakers up to 6300 A.

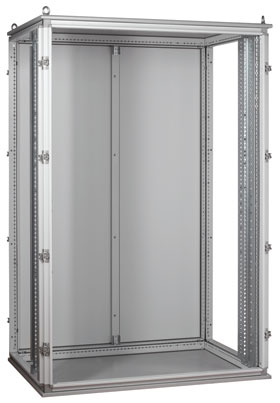

The enclosures consist of a ‘roof-base’ assembly and structural uprights, as well as rear and side panels which can be adapted at any time. Standard distribution allows the user to choose busbars and their supports, with a personal configuration for efficient power distribution.

The optimised distribution system offers the combination of vertical XL-part columns and horizontal XL-part distribution blocks. This system, which ensures freedom of assembly, eliminates the need to create special connections upstream and ensures time savings in installation by enabling connection of appliances on pre-assembled units.

An important feature of this system is the facility for quick joining to any enclosure, without the need for additional accessories. For optimum flexibility and adaptability, there are internal and external cables sleeves, as well as the capability for vertical and horizontal joining.

Trunking supports, wire guide rings and cable tie bars facilitate easy wiring through these enclosures and for enhanced convenience, all side walls and top and bottom plates can be assembled after wiring.

Legrand and its national distributor network also offers a technical advisory and support service.

For more information contact Legrand, +27 (0)11 444 7971, [email protected], www.legrand.co.za
