Interconnection


Control cables with numbered cores

22 March 2017 Interconnection

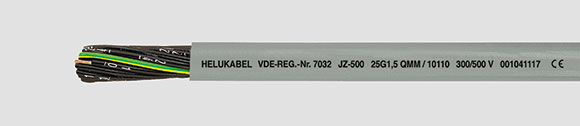

Equipment and machinery installations using the latest cabling technologies from Helukabel can contribute to the ease of installation and overall success of a project. A good example of this is the company’s JZ500 flexible control cable, which is designed to be very supple, yet strong enough to be used in the toughest industrial conditions where its oil and chemical resistance makes it ideal for toolroom controls, conveyor applications, production lines, air conditioning and steel production, among others.

Another feature is its easy-to-read core identification to DIN VDE 0293 that has black cores with continuous white numbering (also available in other colours on request) for ease of installation, particularly where long runs are required or individual installers are working at different ends. The numbering, colours and other special requirements can also be ordered to suit different applications.

According to Hardus van Dyk of Helukabel, the cables are designed for flexible use for applications requiring medium mechanical stresses with free movement and can be used in either dry, moist or wet rooms. Selected PVC compounds guarantee flexibility as well as economical and fast installation.

For more information contact Doug Gunnewegh, Helukabel, +27 (0)11 462 8752, doug.gunnewegh@helukabel.co.za, www.helukabel.co.za
