PIC micros with more CIPs
19 April 2017
DSP, Micros & Memory

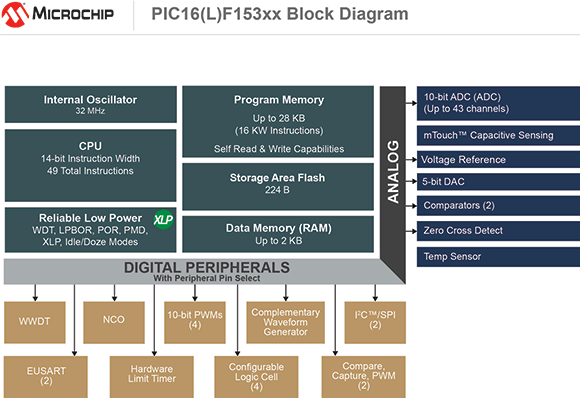

Microchip announced the PIC16F15386 family, the most powerful launching point into the 8-bit PIC microcontroller (MCU) portfolio. In addition to Microchip’s current Core Independent Peripherals (CIPs), this family includes a high-accuracy 32 MHz internal oscillator and memory features such as memory access partition (MAP) with bootloader-friendly write protection to prevent accidental overwrite. Device information area (DIA) offers protected storage for unique device identification and calibration values.
The PIC16F15386 family also offers a comprehensive, easy-to-use development experience with Microchip’s MPLAB Xpress with MPLAB Code Configurator, the quickest way to generate application code. The family is suitable for a broad range of general purpose and low-power applications.
The scalable family offers up to 28 KB Flash and 2 KB RAM in 8- to 48-pin package options. It is the first 8-bit PIC MCU family to offer the 48-pin package, adding more analog-to-digital-converter (ADC) channels and I/Os. The family offers high levels of CIP integration to perform system functions, such as signal generation, motor control, safety monitoring, system communications and human interface, outside the core while minimising power consumption. The new MCUs offer ‘idle’ and ‘doze’ modes as well as peripheral module disable power-management features to enable engineers to optimise the balance between power consumption and performance.
The PIC16F15386 family includes 13 unique products that are offered in various package options including PDIP, SOIC, DFN, UDFN, UQFN and SSOP. All products are available now for sampling and volume production.
For more information contact Shane Padayachee, Avnet South Africa, +27 (0)11 319 8600, [email protected], www.avnet.co.za
