Circuit & System Protection


EMI feedthrough filter

15 November 2017 Circuit & System Protection

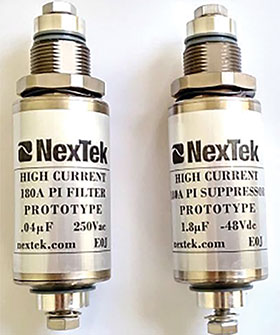

NexTek announced the addition of a new EMI feedthrough filter model to its existing range of filter solutions. As the company’s first standard multistage EMI filter, this new 180 A design offers unique features to potential users.

The Pi filter uses a C-L-C configuration and has a compact Pi filter package for a 180 A rating. The units are available with integrated diode-based suppression for transient voltage protection. These EMI feedthrough filters are available for AC or DC voltage ratings.

These filters have been designed for maximum filtering at minimum frequency. The units are manufactured from high-quality materials for maximum durability and ensure a long life in the field.
