About IP and classifications

29 November 2006 Enclosures, Racks, Cabinets & Panel Products

Gainta is one of the largest enclosure manufacturers in Asia, and is a market leader in thermoplastic enclosures used for protecting electrical and electronic components operating in hostile environments. Gainta is represented in southern Africa by Sivan Electronic Supplies.

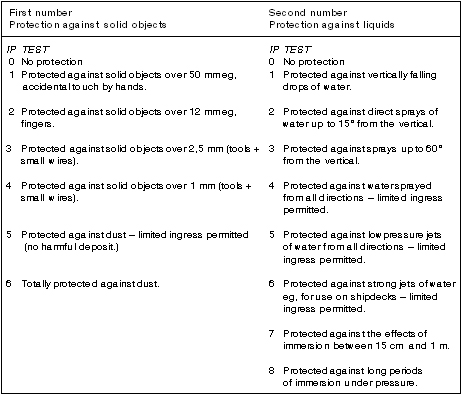

Ingress protection class of enclosures is given in the form of 'IP classification' (International Protection), a two-digit coding which is shown in the Table. Gainta has tested its enclosures according to IEC 529 orEN 60529. The latter requires the second digit to be tested from Class 6 upwards separately to each level of class, thus the double marking IP66/IP67 indicates that the actual tests have been made for both levels.

Gainta's G1XX, G2XX, G3XX series is rated to IP65, and its BSXX, BSXXMF series is rated to IP67.
