31 October 2024Manufacturing / Production Technology, Hardware & Services

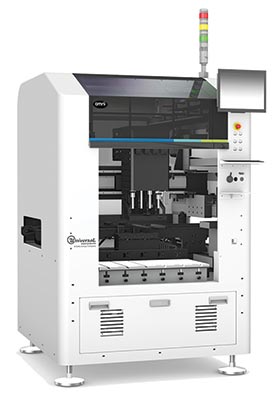

Universal Instruments’ Value Series brings intelligence and simplicity to back-end electronics assembly automation. The Omni Inserter uses a linear motor positioning system and a host of intelligent features to deliver accurate insertion of axial, radial, and other odd-form components at high speed.
The Omni Inserter supports a wide range of feeder types. It features four independent insertion heads with an active clinch, capable of independent Z and theta rotation. Programmable insertion modes monitor force to provide a controlled insertion force. Component picking method is via a pneumatic gripper and vacuum nozzle, and provides a throughput of 2600 cph with an insertion accuracy of 50 µm.
AOI is provided through four upward-facing cameras, all of which utilise AI for detection of product and manufacturing defects. Combined with a best-fit algorithm provides intelligent component placement. Program input is via CAD data import using the intuitive software interface.
The Omni Inserter provides single-process efficiency to complement multi-process cells, and maximises line utilisation while minimising floor space requirements.
