Cable assemblies for stable phase testing

30 June 2020 Interconnection

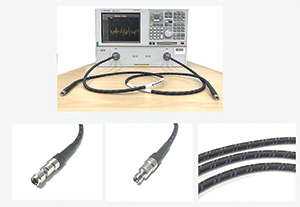

The W-Test series from With-Wave is a complete line of high-precision cable assemblies, designed especially for stable phase testing. They are based on optimised microwave interconnection technologies. Ideal for applications such as telecommunication and test bench systems, the 40, 50 and 67 GHz cable assemblies are claimed to have excellent insertion loss, high phase/amplitude stability in relation to temperature.

Phase stability is ±3,0 degrees for the 40 GHz WT100 assembly, and ±5,0 degrees for the 50 GHz WT200 and 67 GHz WT300. All models exhibit a VSWR (voltage standing wave ratio) of 1,3 maximum and are suitable for operation across the -55°C to +125°C temperature range.

For more information contact Andrew Hannay, RFiber Solutions, +27 82 494 5466, sales@rfibersolutions.com, www.rfibersolutions.com
