2-30 GHz medium-power amplifier

25 August 2021 Telecoms, Datacoms, Wireless, IoT

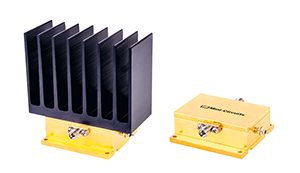

The Mini-Circuits ZVA-02303HP+ is a coaxial, medium-power, wideband and high-gain amplifier operating from 2 GHz to 30 GHz. The model operates over a single positive supply range of +12 to +15 V, allowing users to choose their desired operating voltage. Internal DC-DC conversion circuitry maintains constant efficiency over the full input voltage range.

The amplifier incorporates several DC protection features such as over-voltage, reverse voltage and inrush current that protect the amplifier from damage if mishandled during operation. The amplifier is capable of delivering over +28 dBm of saturated RF power over the entire band and has excellent noise figure performance of 3,8 dB, high gain of 38 dB and gain flatness of ±1 dB.

Its wideband operation combined with high output power makes the ZVA-02303HP+ an ideal choice for testing and instrumentation applications for 5G, satcom and electronic warfare systems.

For more information contact Conical Technologies, +27 66 231 1900, minicircuits@conical.co.za, www.conical.co.za
