Eight-way bandpass filter bank

30 May 2022 Telecoms, Datacoms, Wireless, IoT

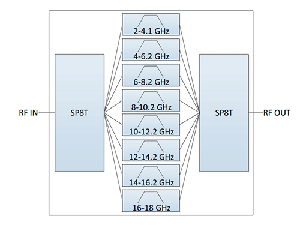

The AM3215 from Atlanta Micro is a broadband, eight-way bandpass filter bank offering low loss and high rejection from 2 GHz to 18 GHz. Each band delivers 2 GHz of bandwidth. With internal 50 Ω matching and packaged in a 9 mm QFN, the AM3215 represents a compact total PCB footprint, making it well suited for low SWaP (size, weight and power) applications.


The device runs off, and is controlled by, a +3,3 V to +5,0 V voltage, and features 7,5 dB insertion loss, 17 dB return loss and +15 dBm P1dB across the -40°C to +85°C operating temperature range.

For more information contact Richard Finniss, RFiber Solutions, +27 82 654 3665, [email protected], www.rfibersolutions.com
