New 32 dB power amplifier module

28 February 2023 Telecoms, Datacoms, Wireless, IoT

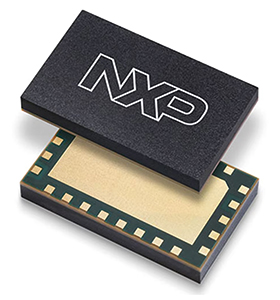

The A5M36TG140 from NXP Semiconductors is a fully integrated Doherty power amplifier module designed for wireless infrastructure applications that demand high performance in the smallest footprint. The field-proven power amplifiers are designed for TDD LTE and 5G systems.

The module features a two-stage solution that includes an LDMOS integrated circuit as a driver and a GaN final stage amplifier. It is fully matched with a 50 Ω input and output and DC blocking. The amplifier features reduced memory effects for improved linearised-error vector-magnitude calculations.

Designed for low-complexity digital linearisation systems, the amplifier is ideal for applications in massive MIMO systems, outdoor small cells and low-power remote radio heads.
