A new connector system by Samtec improves signal integrity by improving power integrity. Optimising power integrity provides a greater signal integrity margin and improves power and thermal efficiency.
The design of a high-speed connector system’s breakout region, or BOR, impacts signal integrity, and the BOR of a power connector also impacts signal integrity.
Samtec’s new connector, the AcceleRate mP, does just that. It’s a combination connector containing both power blades and signal pins, the latter delivering up to 56 Gbps PAM4 performance.
The power blades are rotated 90° in the insulating surrounds. This provides a 20% increase in current over previous systems, and allows a simpler and better path for the current to flow from the board to the connector. Therefore, the BOR of this connector maximises current capabilities, while minimising distribution resistance in the same form factor.
Rotating the current blades 90°, and making them in line with the length of the insulator, allows heat to escape on the broadside of the connector, with all blades having equal access to heat escape. This uniform cooling provides an increase in the current capacity.
Cost-effective microcontroller series Altron Arrow
DSP, Micros & Memory
The STM32C5 series from STMicroelectronics delivers an excellent balance of performance, efficiency, and affordability for embedded designs that require more capability without increasing bill of materials cost.
Read more...Designing with PCIe Spectrum Concepts
Editor's Choice Interconnection
PCI Express has become the backbone of modern high-performance systems with each new generation promising higher bandwidth, but that performance comes with a cost.
Read more...Understanding two key tools for cleaner serial data Altron Arrow
Editor's Choice Analogue, Mixed Signal, LSI
Understanding how pre-emphasis and equalisation works, and when to use one over the other, is critical when designing reliable high-speed systems.
Read more...Ultra-low jitter clocks Altron Arrow
Telecoms, Datacoms, Wireless, IoT
Skyworks has introduced a new family of ultra-low jitter programmable clocks designed to meet the increasing demands of next-gen connectivity.
Read more...Efficient Bluetooth SoC Altron Arrow
Telecoms, Datacoms, Wireless, IoT
The EFR32BG29 wireless SoC from Silicon Labs is a highly efficient, high memory, low-power, and ultra compact SoC designed for secure and high-performance wireless networking for IoT devices.
Read more...Telemetry powering South Africa’s industry Interlynx-SA
Editor's Choice
As South Africa’s economy evolves, industries are under increasing pressure to improve operational efficiency and cut costs. Telemetry is becoming a vital component of industrial strategy, allowing companies to harness real-time data to optimise processes and reduce waste.
Read more...RTOS – The future of embedded systems Altron Arrow
Edge Computing & IIoT
At the heart of the next generation of embedded devices is efficient yet powerful system-level code, often based on an open-source real-time operating system.
Read more...Reference design for NB-IoT plus GNSS Altron Arrow
Design Automation
ST Microelectronics’ STDES-ST87M01IGN is a reference design for the ST87M01 NB-IoT + GNSS module, implemented on a 2-layer FR4 PCB (90 x 60 x 1,6 mm).
While every effort has been made to ensure the accuracy of the information contained herein, the publisher and its agents cannot be held responsible for any errors contained, or any loss incurred as a result. Articles published do not necessarily reflect the views of the publishers. The editor reserves the right to alter or cut copy. Articles submitted are deemed to have been cleared for publication. Advertisements and company contact details are published as provided by the advertiser. Technews Publishing (Pty) Ltd cannot be held responsible for the accuracy or veracity of supplied material.

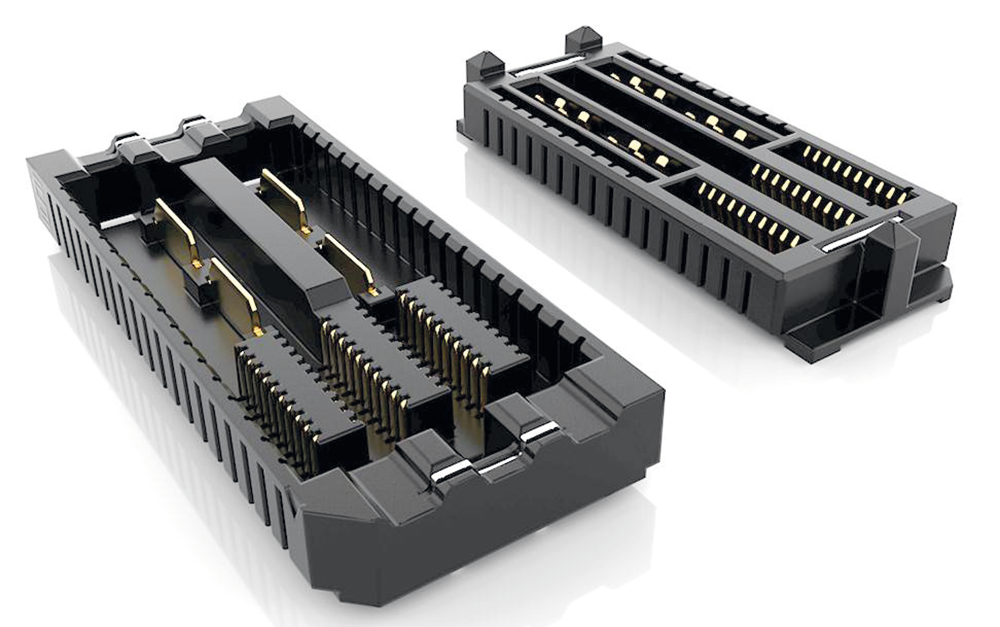

Figure 1. AcceleRate mP connector.

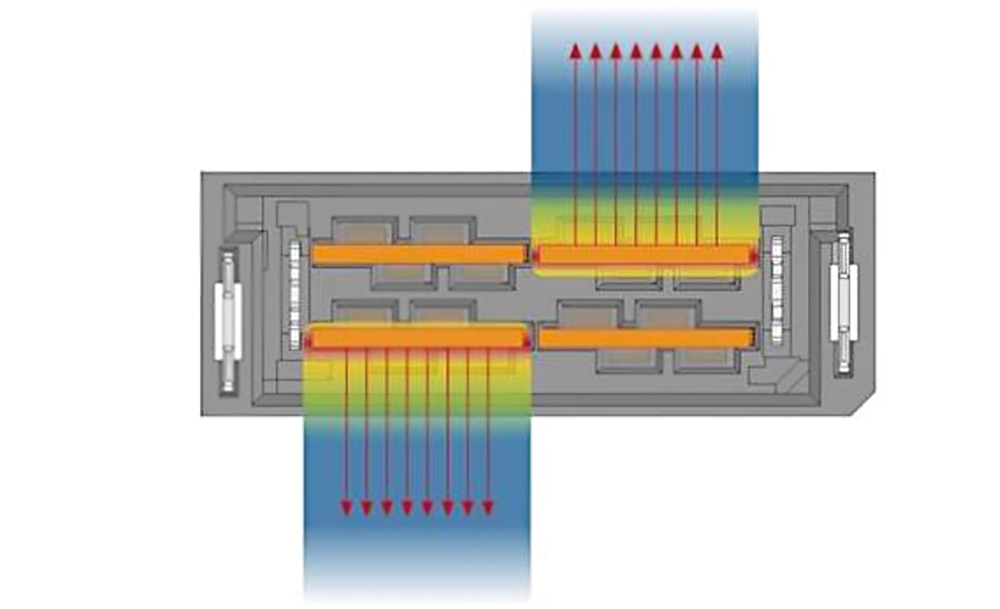

Figure 2. Uniform heat dissipation from the power blades.
