eXtended Filtering added to GNSS precision antenna

26 July 2023 Telecoms, Datacoms, Wireless, IoT

Tallysman Wireless announced that it has added eXtended Filtering (XF) to the TW7972XF (triple-band + L-Band) precision GNSS antenna. Tallysman’s TW7972XF antenna supports GPS/QZSS (L1/L2/L5), GLONASS (G1/G2/G3), Galileo (E1/E5a/E5b), BeiDou (B1/B2a/B2b), NavIC L5, and L-Band correction services.

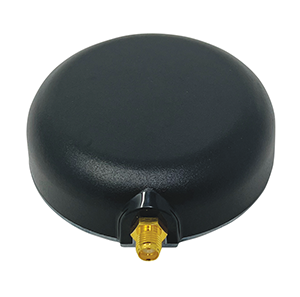

The TW7972XF surface mount Accutenna antenna has a metal base and robust IP67 military-grade radome. Attachment methods include screws, adhesive tape, and magnetic mount. Many options are available for the cabling and antenna connectors.

Worldwide, the radio frequency spectrum has become congested as new LTE bands have been activated, and their signals or harmonic frequencies can affect GNSS antennas and receivers. In North America, the planned Ligado service, which will broadcast in the frequency range of 1526 to 1536 MHz, can affect GNSS antennas that receive space-based L-band correction service signals (1539–1559 MHz). New LTE signals in Europe (Band 32: 1452-1496 MHz) and Japan (Bands 11 and 21: 1476–1511 MHz) have also affected GNSS signals. Lastly, the Inmarsat satellite communication uplink (1626,5 – 1660,5 MHz) commonly used on maritime vessels can also affect nearby GNSS antennas.

Tallysman’s custom XF filtering has been tested to mitigate new and existing LTE signals, enabling the XF antennas to produce clean and pure GNSS radio frequency data.
