2 to 20 GHz surface-mount limiter

26 July 2023 Telecoms, Datacoms, Wireless, IoT

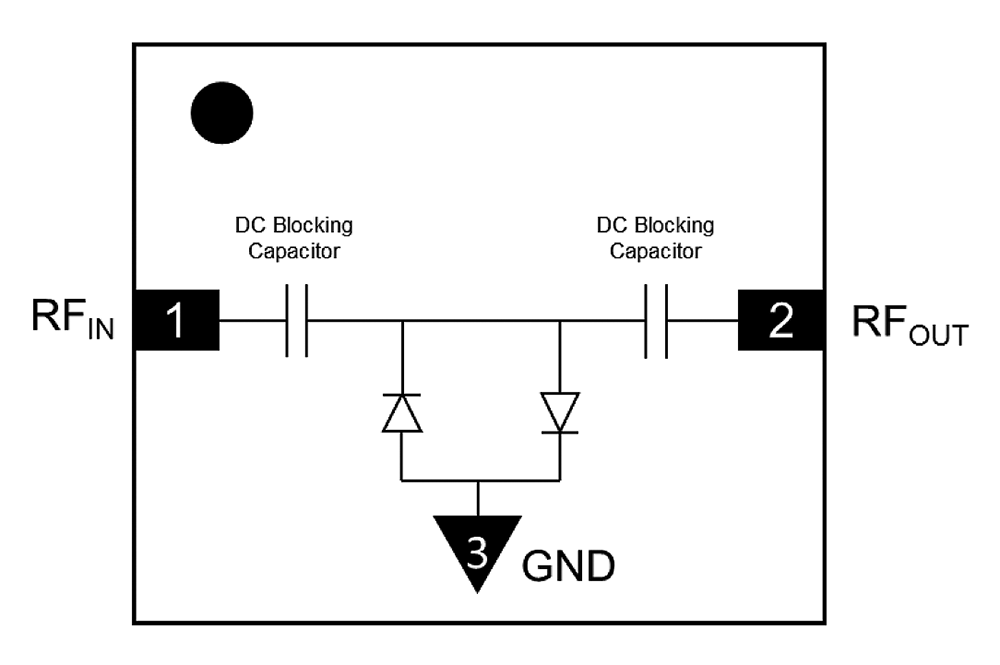

The MADL-011100 from Macom is a lead-free wideband surface-mount limiter that integrates multiple limiter stages and blocking capacitors into a compact laminate package.

This device provides superior low and high signal performance from 2 to 20 GHz without DC bias. It exhibits peak power operation of 58 dBm at 13 GHz, and has an insertion loss of 1 dB at 12 GHz. The passive device is housed in a lead-free 8,8 x 5 x 1,5 mm package, and no DC bias is required for operation.

The MADL-011100 is ideally suited to high peak power receiver-protector microwave circuit applications where higher performance surface-mount limiter assemblies are required.
