The term ‘squircle’ is a portmanteau, or mashup, of ‘square’ and ‘circle’. It looks like a square with rounded corners.
Mathematically, this shape is known as a superellipse. When it comes to SMT stencil design, a looser definition is often used, and the actual shape is known as a rounded square - generated by separating four quadrants of a circle and connecting them with a straight line.
As it turns out, the squircle is an effective shape for maximising both solder paste volume in tight spaces, and improving transfer efficiency.
The properties of squircle apertures
The squircle design incorporates the positive features of both circle and square apertures.
Circle aperture features
Because of their smooth, rounded design, circle apertures have no pad-overlapping corners and no paste dead zones, but it is much more difficult to get sufficient paste volume in tight spaces using circles. This is because the area of a circle with a given diameter is less than that of a square with the same side length (using formulae for the area of a circle vs area of a square: π/4 d2 < d2).
Additionally, circles have equal surface tension across the diameter of the aperture. During separation, this may increase the amount of solder paste that remains in the aperture. Imagine a soap bubble on a flat surface; equal surface tension keeps it stable. This same characteristic discourages paste from exiting the circular aperture.
Square aperture features
A square has the inherent benefit of maximising paste volume in tight spaces. When printing solder paste, however, the particles tend to agglomerate in the sharp aperture corners, resulting in more variation from deposit to deposit. It is also likely this variation will grow over time if the stencil wipe efficacy diminishes and the paste accumulation increases.
Squares inherently have larger surface areas than circles of the same major dimension, so they should deposit more paste, but if those paste-grabbing corners overlap pad edges, they also create gasketing problems that can further drive high variation.
Squircle apertures
The squircle combines the volumetric benefit of square apertures with the paste release benefits of rounded shapes, which also avoids regions of paste accumulation. It brings the best of both worlds to an extremely challenging part of the printing process.
Experimental comparison of aperture shapes

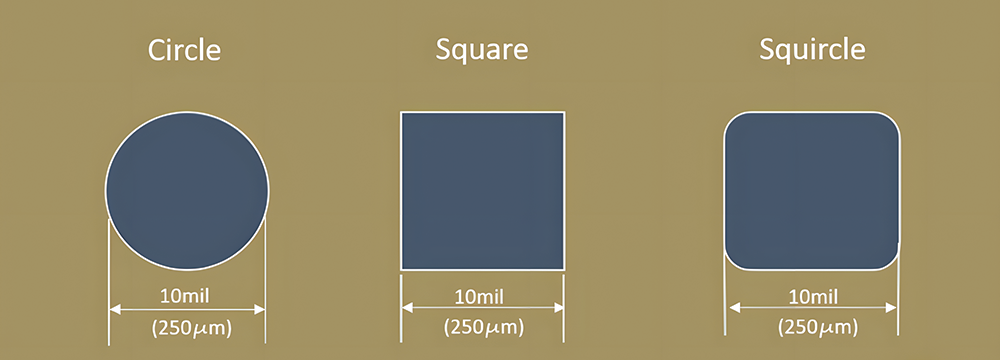

Extensive print testing at AIM’s Juarez, Mexico, applications laboratory, using a stencil containing square, circle, and squircle aperture shapes, supports the strong case for the squircle as a solution to many print challenges. By testing apertures of the same major dimension (diameter or side length) and similar area ratios, transfer efficiencies and actual deposit volumes were able to be directly compared (see figure1).

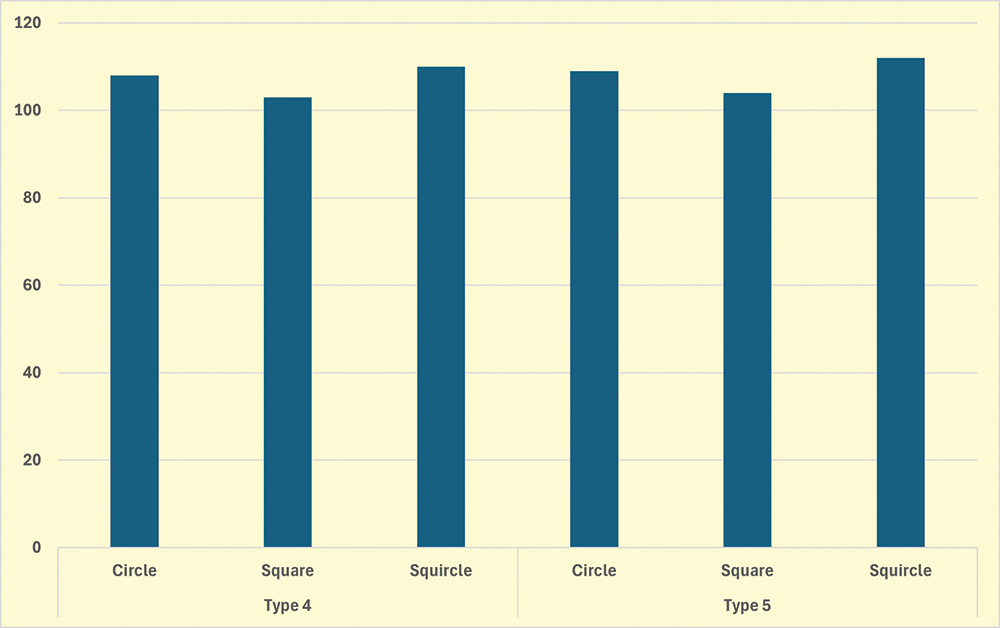

Figure 2 shows the measured transfer efficiencies and calculated coefficients of variation of each type of aperture. Notice the transfer efficiency is slightly lower on the square than the circle, but only by a few percentage points. The square also has slightly higher variation with the Type 4 paste and is equivalent to the Type 5 paste data. The squircle consistently has the highest transfer rate, and comparable or lower variation than the squares or circles.

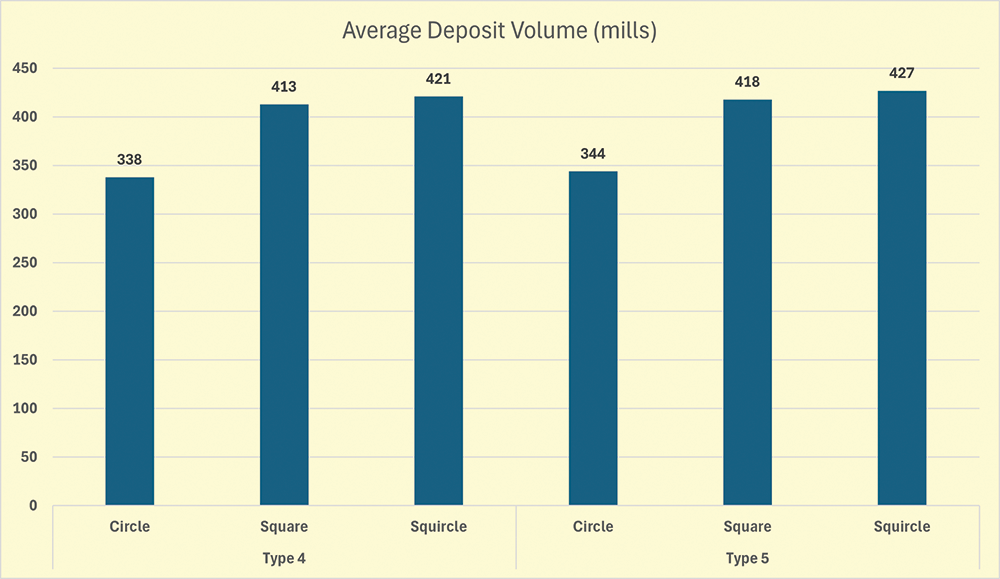

Figure 3 shows the average volume deposited by each aperture shape. Note that although the square showed lower transfer efficiency, its larger area resulted in higher volumes than the circle, but the squircle deposited the highest volumes of all apertures. In all cases, the Type 5 paste consistently produced marginally higher volumes, but not enough to justify a transition to it in a production environment where cost, separate storage, and reflow issues would arise.
It is important to note that in these experiments, transfer rates are very high and variation rates very low compared to typical results from similar print tests. These print tests were conducted under an ideal environment, using a polymer nanocoated stencil. It is reasonable to expect similar trends in production environments, but with lower transfer rates and higher variation rates. It is also reasonable to consider using nanocoatings on stencils with tight area ratios because of the (frequently documented) quality improvements they provide.
Data collected, but not shown here, also indicate the squircle is more robust against the effects of room-temperature aging and long pause times (greater than 60 minutes) between prints.
While this study underscores the squircle’s potential, further research is warranted to explore its applications across diverse assembly conditions and materials. Nonetheless, the initial results are promising, positioning squircles as a viable enhancement to stencil design practices.
