Battery life affects the cost and reliability of IoT-based infrastructure and is a key purchasing consideration for consumer electronic IoT devices.
Ensuring IoT manufacturers correctly calculate battery life is critical. This white paper excerpt examines how battery emulation and test software can help one accurately measure battery life and extend the battery life of an IoT device.
Battery life can contribute significantly to the cost and reliability of Internet of Things (IoT) infrastructure. For consumer electronic devices, battery life is often a critical purchase consideration. Therefore, the fact that the calculated battery life of IoT devices is often inaccurate is a significant issue for manufacturers.
One method to measure battery life is to divide the battery capacity in amp-hours by the average current drain in amps, which gives you a time in hours. However, in the real world, this calculation is overly simplistic.
In fact, the formula can generate inaccurate results because devices use different power modes, including active, sleep, and hibernate. Additionally, operating modes such as constant power and constant resistance will draw current from the battery differently and change the battery’s run time. It is essential to fully understand how a battery responds to these different scenarios and the typical usage patterns of the device to predict battery life accurately.
In addition to varying current drain, battery capacity is variable depending on the average discharge current and usage patterns. Figure 1 shows a considerable variation in discharge capacity based on the discharge current level for an alkaline cell.
Furthermore, temperature can affect battery life, which is another critical consideration. Figure 2 shows how temperature can affect the capacity curves of a battery.
The following are additional factors that can lead to a longer computed battery runtime compared to real-world usage:
• Battery models / profiles are not available.
• Battery profiles are not generated with accurate device operating conditions.
• Current consumption measurements are inaccurate.
• Voltage drops, such as when a device shuts down when the voltage reaches a cutoff range, are not considered.
Battery emulation and profiling software is a solution you can use to predict battery life accurately. In addition, you can use insight into current drain that emulation software provides to change device designs resulting in longer battery run time.
This white paper discusses how to use emulation software to achieve these objectives and includes the following topics:
1. Profiling batteries through charging/ discharging to create unique battery models.
2. Emulating charge states to reduce test time, improve safety, and gain insight to extend battery life.
3. Visually track the charging and discharging of batteries to determine capacity.
4. Cycling batteries to determine capacity loss and battery life reduction.
Quectel’s RG255C-NA and RM255C-GL accelerate 5G RedCap adoption iCorp Technologies
Editor's Choice Telecoms, Datacoms, Wireless, IoT
Quectel’s RG255C-NA and RM255C-GL modules represent a strategic move into this fast-growing segment, delivering Sub-6 GHz 5G connectivity optimised for mid-tier IoT applications.
Read more...SDRs – Which RF architecture should you choose? RFiber Solutions
Editor's Choice Telecoms, Datacoms, Wireless, IoT
There are several common methods of implementing SDR architectures. This paper discusses which is best when meeting a specific need.
Read more...A two-stage approach to super-wide input voltage range DC-DC converters RFiber Solutions
Editor's Choice
Teaser: In addition to handling the various input voltage ranges required, the SynQor line of InQor DC-DC converters are fully encased and ruggedised to handle the harsh environments that often accompany systems that have such challenging technical requirements.
Read more...From the editor's desk: Engineering the future Technews Publishing
Editor's Choice
As we welcome the first issue of Dataweek in a new year, it is an exciting time to be part of the electronics community, especially for our readers. The pace of change across our industry continues to accelerate, reshaping how we design, build, and interact with technology.
Read more...Barracuda commissions new IPC Class 3 aerospace facility Barracuda Holdings
Editor's Choice News
The company has commissioned a new dedicated IPC Class 3 facility in Somerset West. and has concluded a new investment partnership that will provide the capital and management capacity required to scale operations.
Read more...Engineering copper grain structure for high-yield hybrid bonding in 3D packaging Testerion
Editor's Choice Manufacturing / Production Technology, Hardware & Services
The way copper grains are sized and distributed forms the metallurgical foundation of hybrid bonding, enabling lower bonding temperatures, greater reliability, and stable grain structures throughout integration.
Read more...Understanding solder dross: causes and control strategies Truth Electronic Manufacturing
Editor's Choice Manufacturing / Production Technology, Hardware & Services
Dross formation is an inevitable consequence of wave soldering. It occurs when molten solder comes into contact with oxygen, forming metal oxides that float on the surface of the solder bath. Over time, this oxidation byproduct accumulates and must be removed to maintain solder quality and process consistency.
While every effort has been made to ensure the accuracy of the information contained herein, the publisher and its agents cannot be held responsible for any errors contained, or any loss incurred as a result. Articles published do not necessarily reflect the views of the publishers. The editor reserves the right to alter or cut copy. Articles submitted are deemed to have been cleared for publication. Advertisements and company contact details are published as provided by the advertiser. Technews Publishing (Pty) Ltd cannot be held responsible for the accuracy or veracity of supplied material.

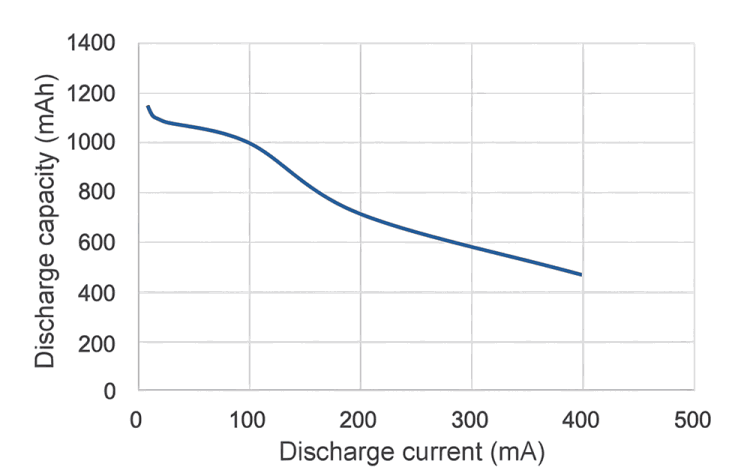

Figure 1. 1100 mAh alkaline cell, 0,9 V cutoff voltage showing discharge capacity variation.

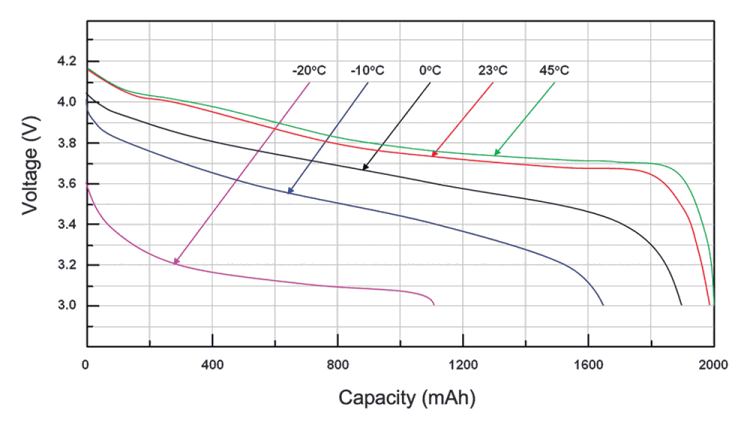

Figure 2. 1000 mAh Li-ion cell, 3 V cutoff voltage showing temperature variation.
