Telecoms, Datacoms, Wireless, IoT


Multi-constellation positioning modules

25 March 2020 Telecoms, Datacoms, Wireless, IoT

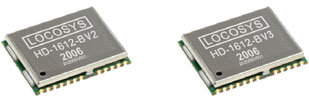

The Locosys HD-1612-BV2 and HD-1612-BV3 are high-performance, dual-band GNSS positioning modules that are capable of tracking all global civil navigation systems (GPS, GLONASS, BDS, Galileo, QZSS and IRNSS). They integrate an efficient power management architecture to achieve low power consumption and high sensitivity.


In addition, concurrent reception of L1 and L5 band signals achieves sub-metre position accuracy. They are suitable for personal, automotive and marine navigation.

The small form factor, 16 x 12,2 x 2,4 mm devices feature 40 tracking channels, smart jammer detection and suppression, built-in LNA and SAW filter and active antenna detection.
