Beamforming transceiver RFIC

26 February 2021 Telecoms, Datacoms, Wireless, IoT

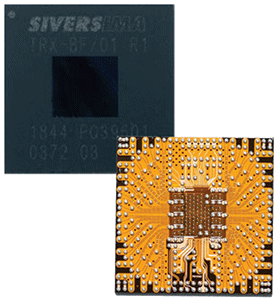

The TRX BF/01 from Sivers Semiconductors is a 16+16 channel beamforming transceiver radio frequency integrated circuit (RFIC) that operates from 57 to 71 GHz. This WiGig/802.11ad compliant transceiver has an integrated synthesiser and supports any mmWave (millimetre-wave) modem with zero-IF interface. The transceiver has a good link budget, flexible channelisation, and excellent error vector magnitude (EVM) performance which enables 64-QAM modulation or more.

The transceiver is fully integrated with the RapidWave RWM6050/51 mmWave modem from IDT and CLOPTech’s CT6100 WiGig modem. It can transmit higher data rates at longer distances with greater robustness against interferers. The TRX BF/01 is available in an eWLB (embedded wafer level ball grid array) package and is ideal for unlicensed 5G, V2X and FWA applications. It is suitable for outdoor infrastructure and can operate over a temperature range from -40°C to +85°C.

For more information contact Andrew Hutton, RF Design, +27 21 555 8400, andrew@rfdesign.co.za, www.rfdesign.co.za
