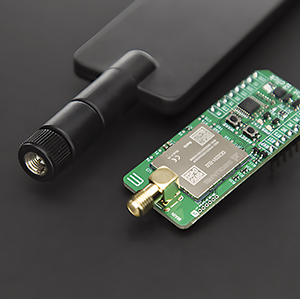

LTE Cat.1 5 Click is a new cellular wireless connectivity Click board from MIKROE. The compact Click add-on boards enable developers to rapidly provide proof-of-concept, then prototype and code new embedded projects. LTE Cat.1 5 Click provides 4G LTE Cat 1 bis cellular connectivity tailored for European IoT, M2M, and consumer applications where reliable data transmission and low power consumption are critical.
LTE Cat.1 5 Click is based on the GC02S1-EU2, a 3GPP LTE Release 14 Cat 1 bis compliant module from Sequans, featuring optimised Calliope 2 silicon for improved performance and reduced power consumption. Tailored for the European market, it features support for LTE bands B1, B3, B8, B20 and B28 across approximately 703 MHz to 2170 MHz, data rates up to 10 Mbps downlink and 5 Mbps uplink, UART communication interface, firmware upgrade support, hardware flow control, wake and reset functions, debug access through UART1 and JTAG, and 1,8 V uSIM card support.
