LTE backhaul equipment
24 July 2013
Telecoms, Datacoms, Wireless, IoT

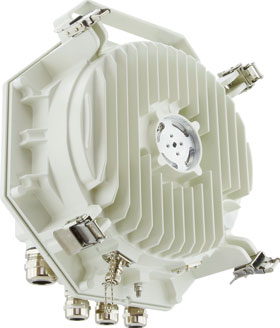

Wireless Excellence announced the availability of its CableFree FOR2 microwave transmission solution for 4G/LTE and 3G backhaul, as well as telecom, ISP, government and other types of wireless network. FOR2 provides high capacities in an all-outdoor ‘zero footprint’ solution and can be deployed without indoor components, racks or space. Timing, IP network intelligence and resilience are all included in the unit.
The system uses the licensed frequency bands from 7 to 38 GHz, and offers 400 Mbps full duplex per channel (800 Mbps aggregate) scaling up to 800 Mbps (1,6 Gbps aggregate) or higher using multiple channels. It comes with advanced features such as adaptive coding and modulation and automatic power control to ensure maximum uptime and stability of links even in harsh conditions such as tropical rainfall.
Important synchronisation features for 3G/4G base stations and support for synchronous Ethernet and IEEE 1588v2 are included to simplify direct connection to cellular infrastructure. At the network level, it offers native support for 2+0 aggregation for 800 Mbps full duplex capacity as well as 1+1 resilience within the radios, and Ethernet ring protection and rapid spanning tree, to build resilient city networks with all types of topology.
Integrated radio link aggregation allows a simple ‘pay as you grow’ model, adding extra channels or components as needed to meet rising bandwidth demands. The systems are MEF9 and MEF-14 (Metro Ethernet Forum) compliant.
For more information contact Derek de Wet, FSO International, +27 (0)83 657 4924.
