Since the beta release of the AWS IoT LTS libraries for ESP32 in August 2021, many customers and independent developers using the Espressif ESP32 MCUs have been using them in various projects based on examples initially provided. A stable release of ESP-AWS-IoT has now been made available by Espressif on GitHub which includes a reference example for the ESP32-C3, developed in collaboration with the AWS team. The ESP-AWS-IoT framework enables AWS-IoT cloud connectivity with ESP32-based platforms using AWS IoT device-embedded SDK. The combination of these repositories provides a production-ready starting point for making applications that connect to AWS IoT Core.
The main characteristics of the stable library release are:
Closer-to-production example
The reference example now provided in the repository provides a better starting point for building production applications. More specifically, the latest reference example is built from the ground up to provide a reliable application that can handle and recover from real-world cases, such as MQTT-level disconnections or Wi-Fi disconnections.
The new reference example also includes Espressif’s Unified Provisioning that allows use of a smartphone app (available in open-source format for Android on the Google Play Store, and iOS on the Apple App Store) to provide Wi-Fi credentials and for sending additional information to the device.
Security best practices
One of the most important highlights of the reference example is that it is designed according to best security practices and provides a comprehensive guide for following them in production use cases. Specifically, the new reference example showcases the Digital Signature Peripheral on the ESP32-C3, which provides a hardware root-of-trust and secure storage for certificates. This ensures that the device identity remains protected by using hardware security. The guide also provides steps for security considerations in production, such as enabling Flash Encryption and Secure Boot.
Combination of AWS libraries and features
The published reference example integrates various libraries, like coreMQTT, coreJSON and AWS OTA to allow for easy addition of this functionality.
Libraries as individual IDF components
Restructuring the ESP-AWS-IoT SDK has provided the ability to use each AWS LTS library as a standalone ESP-IDF component that can easily be added to any example. Each library comes with its own port layer and configuration that can be easily managed for the application.
Next-gen Wi Fi 6E connectivity for embedded systems iCorp Technologies
Telecoms, Datacoms, Wireless, IoT
Espressif Systems has expanded its connectivity portfolio with the introduction of the ESP32-E22, the company’s first Wi-Fi 6E connectivity co-processor.
Read more...Rugged railway-grade DC-DC power modules iCorp Technologies
Power Electronics / Power Management
iCorp Technologies has introduced the AIPUPOWER ZCD100 and ZCD150 Series, a family of rugged DC-DC converters designed to meet the demanding electrical and environmental requirements of railway and transportation systems.
Read more...Quectel redefines connectivity with RG660Qx 5G Series iCorp Technologies
Telecoms, Datacoms, Wireless, IoT
Purpose-built to meet the demands of next-generation IoT and wireless broadband, these modules leverage the cutting-edge Qualcomm X85 and X82 5G Modem-RF systems to deliver enterprise-grade performance.
Read more...Quectel’s RG255C-NA and RM255C-GL accelerate 5G RedCap adoption iCorp Technologies
Editor's Choice Telecoms, Datacoms, Wireless, IoT
Quectel’s RG255C-NA and RM255C-GL modules represent a strategic move into this fast-growing segment, delivering Sub-6 GHz 5G connectivity optimised for mid-tier IoT applications.
Read more...Powering next-gen IoT connectivity iCorp Technologies
Telecoms, Datacoms, Wireless, IoT
The FGMC63N tri-band MCU Wi-Fi 6E module from Quectel addresses offers integrated connectivity across 2,4 GHz, 5 GHz, and 6 GHz bands in a compact, highly optimised design.
Read more...Non-isolated, regulated DC-DC module iCorp Technologies
Power Electronics / Power Management
AIPUPOWER’s K7805M-3000 is a compact switching regulator module delivering a regulated 5 V output at up to 3 A, intended for common DC buses used in industrial and mobile platforms.
Read more...Quad RF ADC/DAC for wideband transceiver design Altron Arrow
DSP, Micros & Memory
The AD9084 from Analog Devices integrates a quad 16-bit RF digital-to-analogue converter with a maximum sampling rate of 28 GSPS and a quad 12-bit RF analogue-to-digital converter.
Read more...High-performance FPGA family EBV Electrolink
DSP, Micros & Memory
AMD’s Kintex UltraScale+ FPGA family delivers high-performance, mid-range field programmable gate arrays that balance price, performance, and power efficiency for demanding DSP applications.
Read more...Compact and scalable development board
DSP, Micros & Memory
The FRDM-MCXW72 from NXP is a compact and scalable development board for rapid prototyping of the MCX W72 multiprotocol wireless MCU.
Read more...High-performance processing for cost-aware industrial IoT Altron Arrow
DSP, Micros & Memory
STMicroelectronics has expanded its industrial processing portfolio with the new STM32MP2 series, a family of application microprocessors designed to deliver higher performance, advanced security and long-term reliability for cost-sensitive industrial IoT systems.
While every effort has been made to ensure the accuracy of the information contained herein, the publisher and its agents cannot be held responsible for any errors contained, or any loss incurred as a result. Articles published do not necessarily reflect the views of the publishers. The editor reserves the right to alter or cut copy. Articles submitted are deemed to have been cleared for publication. Advertisements and company contact details are published as provided by the advertiser. Technews Publishing (Pty) Ltd cannot be held responsible for the accuracy or veracity of supplied material.

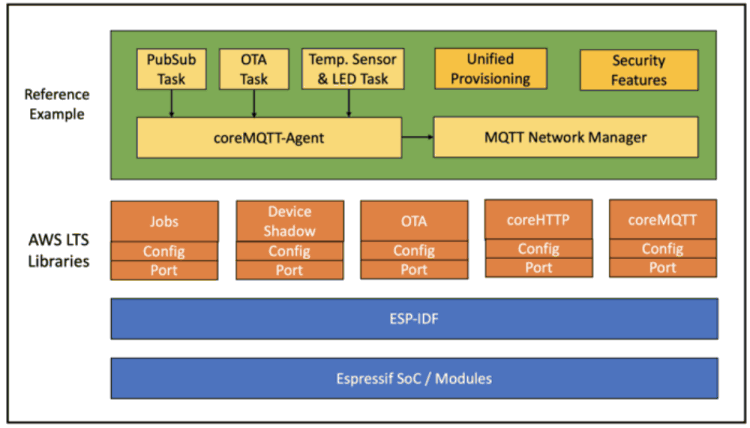

Figure 1 – Stable Release of ESP-AWS-IoT
